EXPLOSION PROOF (EPLL SERIES)

$0.00

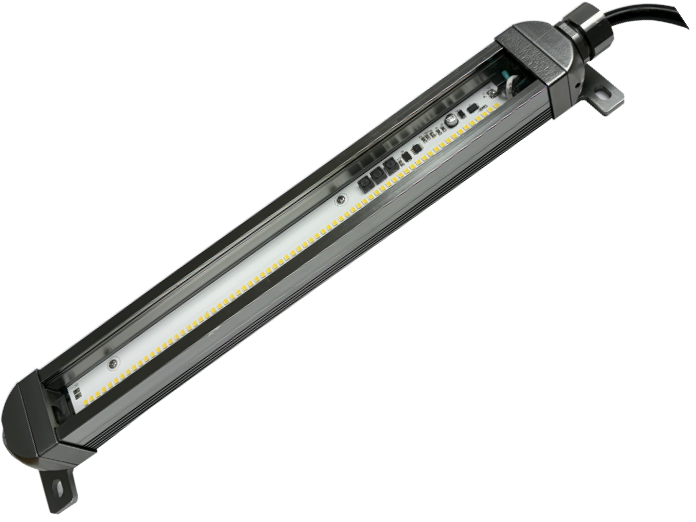

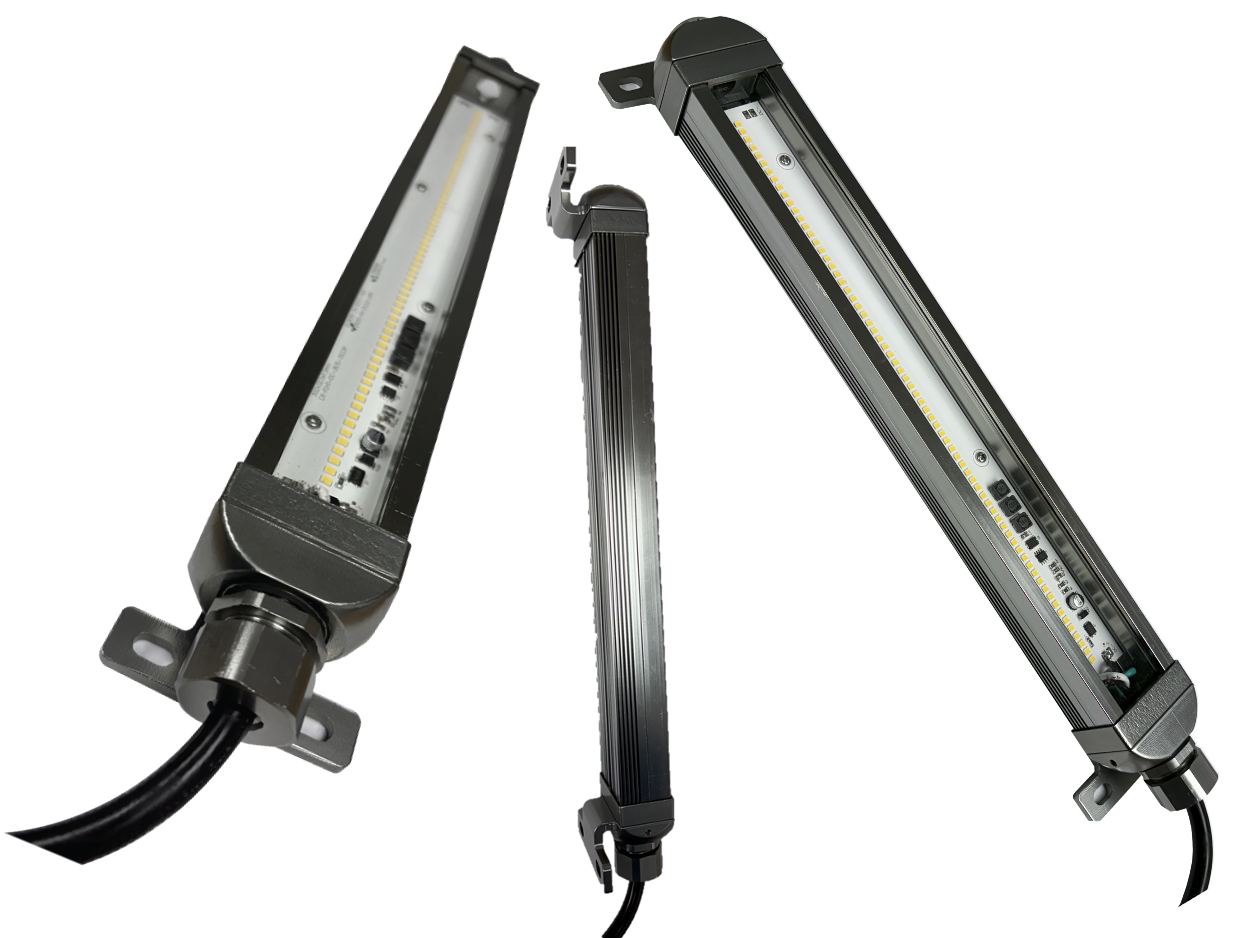

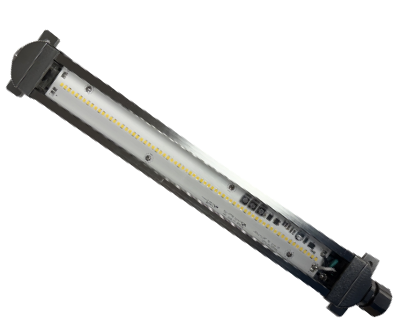

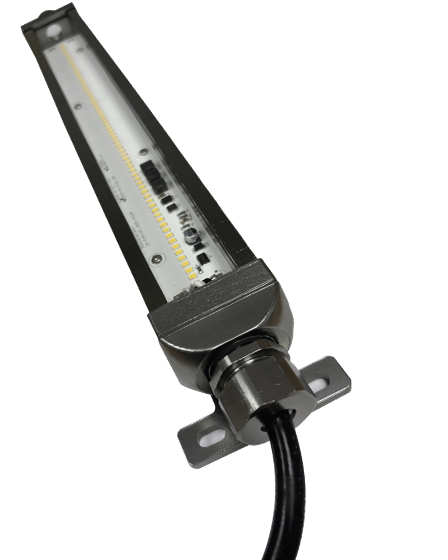

Green Ignite's Explosion Proof - Slim Linear Dual Certified EPLL Series fixture

Class I Division 2 | Industrial

Comes in 1FT, 2FT, 3FT, and 4FT

Green Ignite's Explosion Proof - Slim Linear Dual Certified EPLL Series fixture

Class I Division 2 | Industrial

Comes in 1FT, 2FT, 3FT, and 4FT

PART NUMBERS

GI-EPLL-1C50-AC | 9W | 1,000LM | 1FT | 120 VAC

GI-EPLL-1C50-12DC | 9W | 1,100LM | 1FT | 12 VDC

GI-EPLL-1C50-24DC | 9W | 1,100LM | 1FT | 24 VDC

GI-EPLL-2C70-AC | 18W | 2,000LM | 2FT| 120 VAC

GI-EPLL-2C70-12DC | 18W | 2,200LM | 2FT | 12 VDC

GI-EPLL-2C70-24DC | 18W | 2,200LM | 2FT | 24 VDC

GI-EPLL-3C100-AC | 27W | 3,000LM | 3FT | 120 VAC

GI-EPLL-3C100-12DC | 27W | 3,240LM | 3FT | 12 VDC

GI-EPLL-3C100-24DC | 27W | 3,240LM | 3FT | 24 VDC

GI-EPLL-4C175-AC | 36W | 4,000LM | 4FT | 120 VAC

GI-EPLL-4C175-12DC | 36W | 4,320LM | 4FT | 12 DC

GI-EPLL-4C175-24DC | 36W | 4,320LM | 4FT | 24 VDC

CLASSIFICATIONS

Marking UL844 (North American)

Class I, Division 2, Groups A, B, C, D

Class II Division 2, Groups F, G

Other Markings: UL1598

Other Ratings: IK08 (glass lens)

Color Temp: 5000K
CRI: 80
Ambient Temp (F): -40°-140°/T6
IP66
Beam Angle: 120° Standard
30°/ 40° / 60° / 90° /T2/ T3/ T5 optional
Available in 277V (please ask us)
Spec Sheet

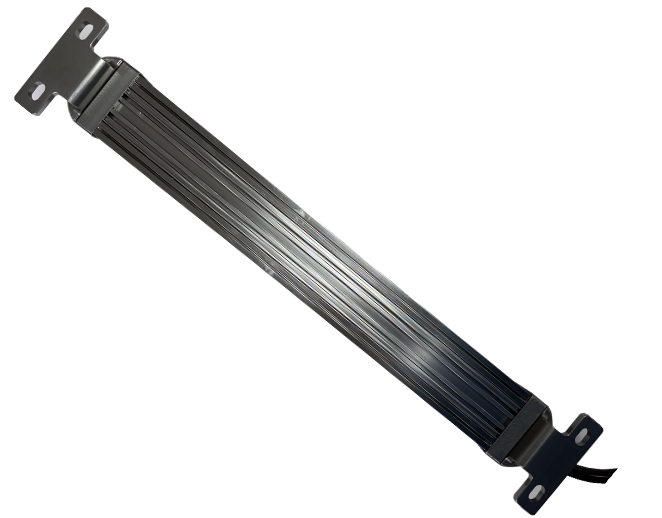

Mounting bracket: stainless steel
Hardware: stainless steel
Lens: clear polycarbonate (standard)
Available in: clear glass, frosted glass, and frosted polycarbonate
Housing: 6063 aluminum alloy
