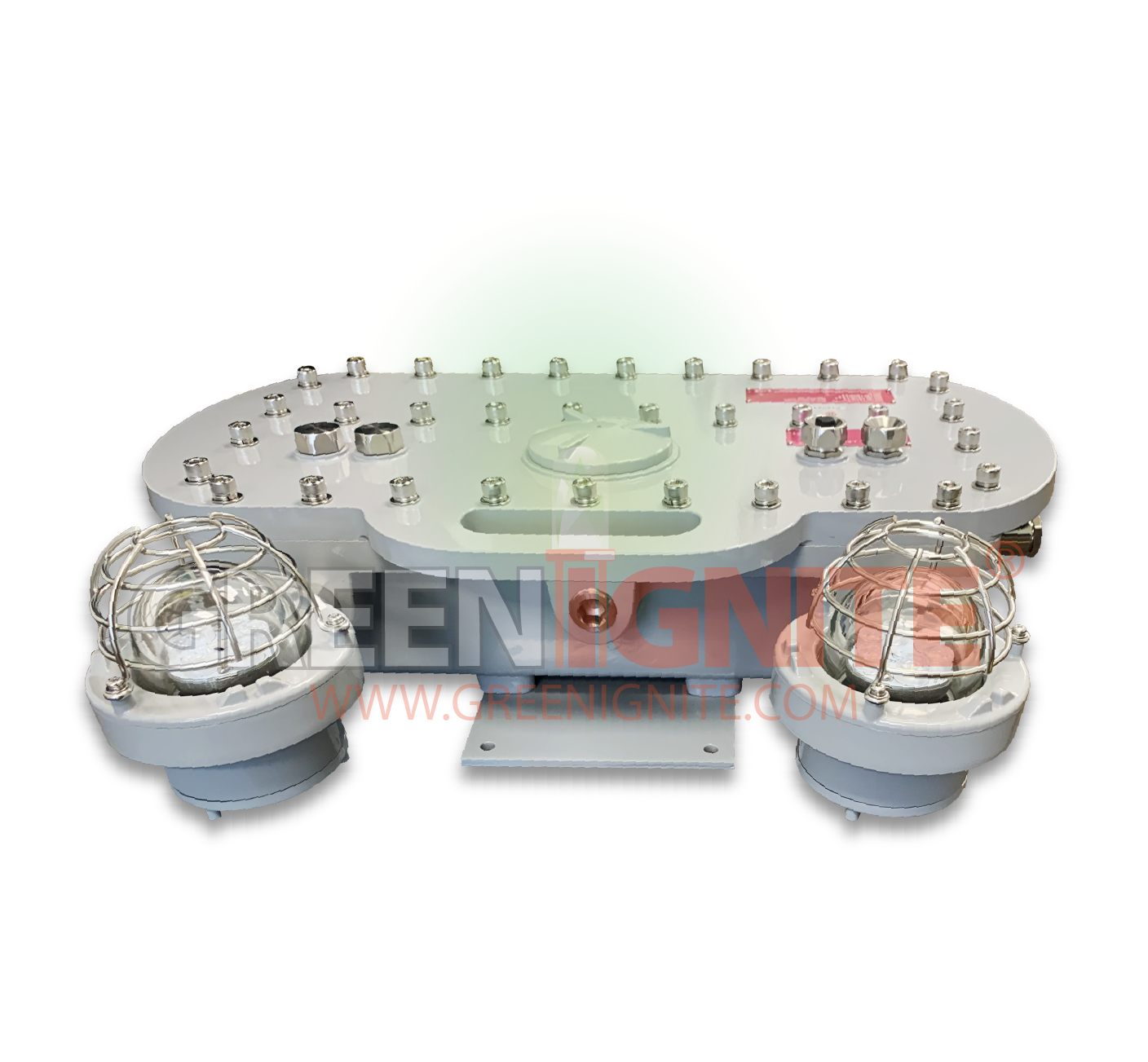

EXPLOSION PROOF (ES SERIES)

$0.00

Green Ignite's Explosion Proof ES Series

  • CLASS I DIVISION I

Material:
Quantity:
Add To Cart

Green Ignite's Explosion Proof ES Series

  • CLASS I DIVISION I

Green Ignite's Explosion Proof ES Series

  • CLASS I DIVISION I

PART NUMBERS

GI-EPES-C50S-C1D1 | SQUARE | 10W | 900LM
100-277V | 5000K | WITH SPOTLIGHT

GI-EPER-C50S-C1D1 | ROUND | 10W | 900LM
100-277V | 5000K | WITH SPOTLIGHT

GI-EPER-C50ES-C1D1 | ROUND | 10W | 900LM
100-277V | 5000K | WITH SPOTLIGHT & EXIT SIGN

GI-EPER-C50E-C1D1 | ROUND | 10W | 900LM
100-277V | 5000K | WITH EXIT SIGN


CLASSIFICATIONS

Class I, Division 1, Groups C, D
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G
Class II, Division 2, Groups F, G
Class III

UL 844 Hazardous Locations
UL 924 Emergency Lighting
UL 1598A Marine Outside Type
UL 1598 Wet Locations
UL8750 LED Safety
ETL, NEMA 4X

Other Rating
1P66, IK10

    • Rated for high temperatures, humidity, dust, and vapor locations

    • Spotlight can be adjusted horizontally or vertically

    • Built-in battery backup with 3-hour emergency operation

    • 0-10V Dimmable

    • Includes 3/4" NPT or M25 conduit hubs

    • Beam Angle: 120 Degrees

    • Warranty: 6 Years

    • Ambient Temperature (F): -40- 140Degree

    • Efficacy: 90lm/W

    • CRI: 80

    • 10KvA Surge protection

  • ES SERIES EXLOSION PROOF SPEC SHEET

    ES SERIES WIRING MANUAL

  • Housing: A360 die-cast aluminum

    Lens: Tempered glass

    Hardware: Stainless steel
