EXPLOSION PROOF (DL SERIES) DROP LIGHITNG

$0.00

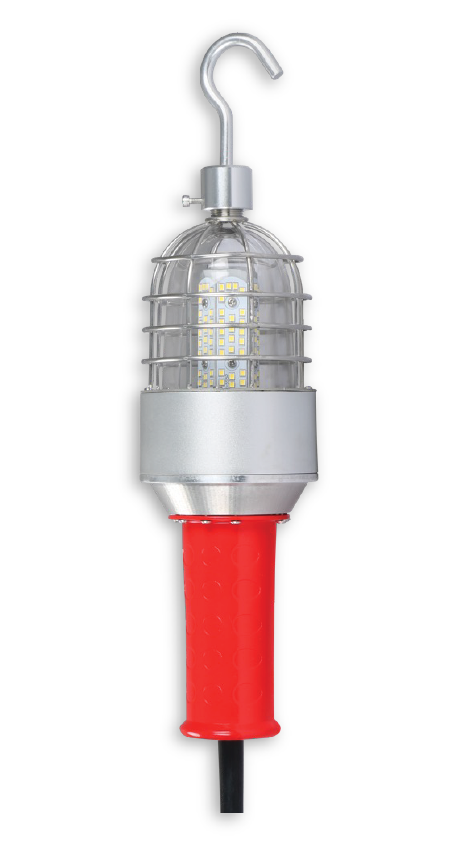

Green Ignite’s DL Series explosion proof fixtures

  • ATEX & IECEx

  • CLASS I, DIVISION I

Type:
Wattage:
Quantity:
Add to Inquiry

Green Ignite’s DL Series explosion proof fixtures

  • ATEX & IECEx

  • CLASS I, DIVISION I

Green Ignite’s DL Series explosion proof fixtures

  • ATEX & IECEx

  • CLASS I, DIVISION I

PART NUMBERS

GI-EPDL-C70-C1D1 | 10W | 1,000LM | Type DL

GI-EPDL2-C70-C1D1 | 10W | 1,000LM | Type DL2

GI-EPDL-C100-C1D1 | 15W | 1,950LM | Type DL

GI-EPDL2-C100-C1D1 | 15W | 1,950LM | Type DL2

GI-EPDL-C100HO-C1D1 | 20W | 2,000LM | Type DL

GI-EPDL-C150-C1D1 | 30W | 3,000LM | Type DL

CLASSIFICATIONS

ATEX Marking
II 2 G Ex db op is IIC T4/T5 Gb
Il 2 D Ex op is tb IIIC T135° CT Db
Ex op is tb IIIC T135° CT Db

IECEx Marking
Ex db op is IIC T4/T5 GB

UL844 Marking (North American)
Class I, Division 1 Groups B, C, D
Class II, Division 1 Groups F, G
Class II, Division 2 Groups F, G
Class III

Marine Marking
UL 1598
ABS and DNV Type Approved

    • Included swivel hook for easy mounting

    • Plugs into standard outlets

    • Equip with emergency battery back-up

    • Compact, portable & lightweight

    • High vibration & impact resistant

    • IP67

    • IK10

    • CRI: 80

    • Color Temp: 5000K

    • Ambient Temp (F): -40 - 122

    • Housing: Copper Free
      aluminum

    • Lens: Tempered Glass

    • Surge Protection: 10KV

    • Efficacy: 30 LM/W

  • DL SERIES SPEC SHEET
