HIGH TEMP EXPLOSION PROOF (HTL SERIES)

$0.00

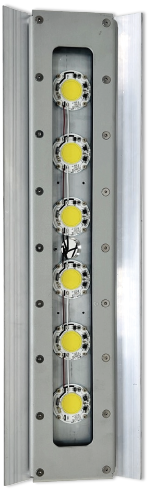

Green Ignite’s high temperature LED HTL series fixtures

  • CLASS I, DIVISION II

Voltage:
Wattage:

Green Ignite’s high temperature LED HTL series fixtures

  • CLASS I, DIVISION II

PART NUMBERS

GI-EPHTL-12C175-C1D2 | 40W | 120V | 2FT
GI-EPHTL-27C175-C1D2 | 40W | 277V | 2FT
______________________________________________________

GI-EPHTL-12C250-C1D2 | 60W | 120V | 2FT
GI-EPHTL-27C250-C1D2 | 60W | 277V | 2FT
______________________________________________________

GI-EPHTL-12C250HO-C1D2 | 80W | 120V | 4FT
GI-EPHTL-27C250HO-C1D2 | 80W | 277V | 4FT
______________________________________________________

GI-EPHTL-12C400-C1D2 | 120W | 120V | 4FT
GI-EPHTL-27C400-C1D2 | 120W | 277V | 4FT
______________________________________________________

CERTIFICATIONS

Class I, Division 2, Group A, B, C, D

UL 844
UL 1598 Luminaires
UL 8750
CSA C22.2 No. 137-18
CSA C22.2 No. 250.0
CSA C22.2 No. 250.13

    • IP Rating: IP67

    • Beam Angle: 160 Degrees

    • 40W Ambient Temp (F): -40 - 219 Degrees

    • 60W Ambient Temp (F): -40 - 206 Degrees

    • 80W Ambient Temp (F): -40 - 226 Degrees

    • 120W Ambient Temp (F): -40 - 212 Degrees

    • Warranty based on 212-186 (F): 1 year

    • Warranty based on 185-149 (F): 2 years

    • Warranty based on 149 (F) or below: 6 years

    • Efficacy: 110 LM/W

    • Thread: M25

    • Housing: Aluminum Alloy

    • Lens: Tempered Glass

  • GI-ACC-EPHLT4-TR
    Wall Bracket for 4ft

    GI-ACC-EPHLT2-TR
    Wall Bracket for 2ft

  • Spec Sheet
